Modellen IV10, IV11, IV19, IV1A, IV1B, IV1N

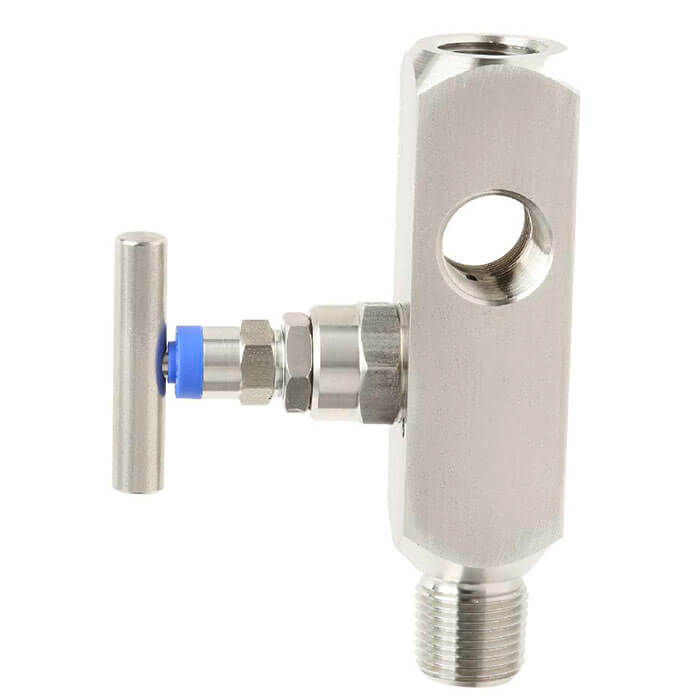

Naald- en multipoortventiel

Name: Naald- en multipoortventiel - IV10, IV11, IV19, IV1A, IV1B, IV1N
Brand: WIKA
Price: 89.25 EUR

van € 89,25excl. btw & Verzending

Leveringsinformatie: instrumenten op voorraad zijn per direct leverbaar; voor op maat gemaakte instrumenten zie de artikeldetails.

Voorbeeld

Technische informatie

Specifications according to data sheet	AC 09.22
Medium temperature	max. +204°C [400°F] - PTFE
Medium temperature	max. +538°C [1.000°F] - graphite
Medium temperature	max. +180°C [356 °F] - TA-Luft/ISO15848
Body material	other materials also available on request
Standaardfuncties
Version	1-Valve Needle Valve
Material body	Stainless steel 316/316L - 1.4401/1.4404 - S31600/S31603
Material packing	PTFE
Certificates accessory	NACE MR0175 Sour Gas Service & Inspection certificate 3.1, EN 10204, all wetted parts material

Bonnet design		Standard
Design		Needle valve			Multiport Needle valve
Vent connection		without	M8 female laterial bleeder with plug	1/4" NPT female with plug	2nd Port with plug, 3rd Port with bleeder
Nominal pressure		6000 psi / 420 bar	6000 psi / 420 bar	6000 psi / 420 bar	6000 psi / 420 bar
Connection process side + instrument side	Prijs	€ 89,25	€ 96,73	€ 96,73	€ 148,75
1/4 NPT female - 1/4 NPT female	14364521	14356072	81640189	–
Prijs	€ 96,40	€ 103,87	€ 103,87	€ 148,75
1/4 NPT male - 1/4 NPT female	57410480	48759104	84027176	–
Prijs	€ 89,25	€ 96,73	€ 96,73	€ 148,75
3/8 NPT female - 3/8 NPT female	31186032	–	–	–
1/2 NPT female - 1/2 NPT female	14370932	14275670	68161504	14275424
Prijs	€ 96,40	€ 103,87	€ 103,87	€ 155,90
1/2 NPT male - 1/2 NPT female	47442988	14275445	14298395	14275438
Prijs	€ 121,38	€ 96,73	€ 96,73
3/4 NPT female - 3/4 NPT female	47463358	–	–	–
Prijs	€ 89,25	€ 96,73	€ 96,73
G 1/4 female - G 1/4 female	14372364	–	–	–
G 3/8 female - G 3/8 female	81648759	–	–	–
G 1/2 female - G 1/2 female	14275411	58454973	57414334	–
Prijs	€ 96,40	€ 103,87	€ 103,87
G 1/2 male - G 1/2 female	81640224	14275661	57408001	–
Prijs	€ 114,24	€ 144,32	€ 144,32
G 3/4 female - G 3/4 female	31231384	–	–	–
Prijs	€ 136,85	€ 144,32	€ 144,32
M20x1,5 male - M20x1,5 female	81640785	81640786	36695554	–
